L122 Top Load Spray Cabinet Parts Washer

Name: L122 Top Load Spray Cabinet Parts Washer
Brand: Magido USA
SKU: L122
Availability: InStock

X51 Series

All of our Machines are built using
Heavy Duty 304 Stainless Steel

The X51 series, L-122 Spray Cabinet Washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces.

The L-122 features a versatile clamshell design and dual pump system which optimizes distance of the wash nozzles to the turntable for maximum cleaning performance. The ergonomic load head and all stainless construction make this parts washer the ideal workhorse for your workshop

FEATURES
OPTIONS

Heavy Duty 304 Stainless Steel Construction
304 Stainless Steel Centrifugal Pumps
Incaloy Heating Element
Fluid Level Shut Off Switch
Locking Lid Closure with Strut Supports
Door Safety Switch
304 Stainless Steel Turntable (no sharp metal edges)
304 Stainless Steel Spray Bars With Optimized (V-Jet) Wash Nozzles
Automatic Turntable Drive
Removable Isolation Floor & Chip Basket
NEMA 4 Electrical Panel With Main Disconnect Switch
Low Noise Operation

Line Rinse To Drain
Filtration
Exhaust Fan
Oil Water Separator
Tank & Cabinet Insulation
Air Knife Blow-Off
Heated Dryer
Steam/Mist Collector
Automatic Chemical Proportioning System
Stack Light Tower
Removable Turntable & Roll Away Cart
Drain Pump

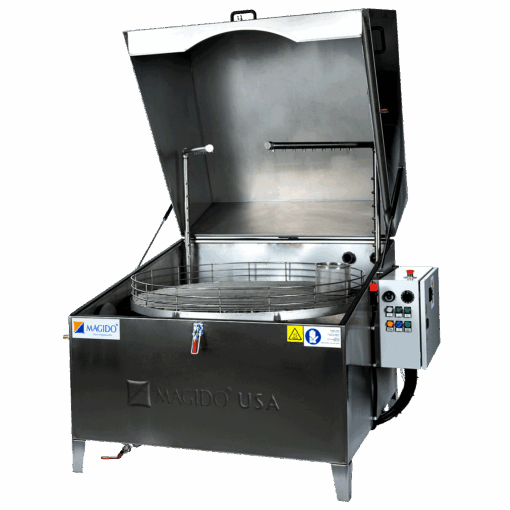

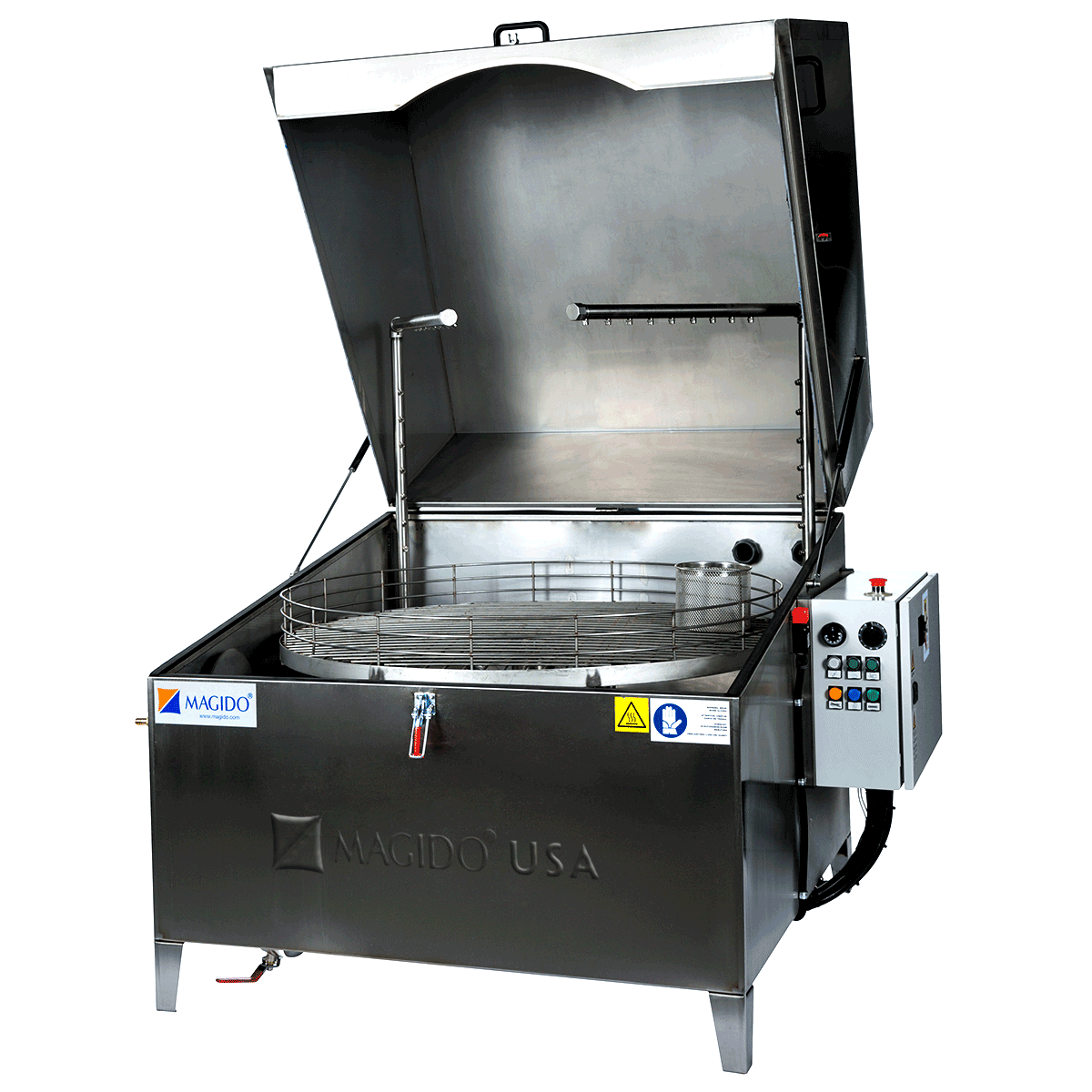

lid open X51 Series L122 Top Load Spray Cabinet Aqueous Parts Washer

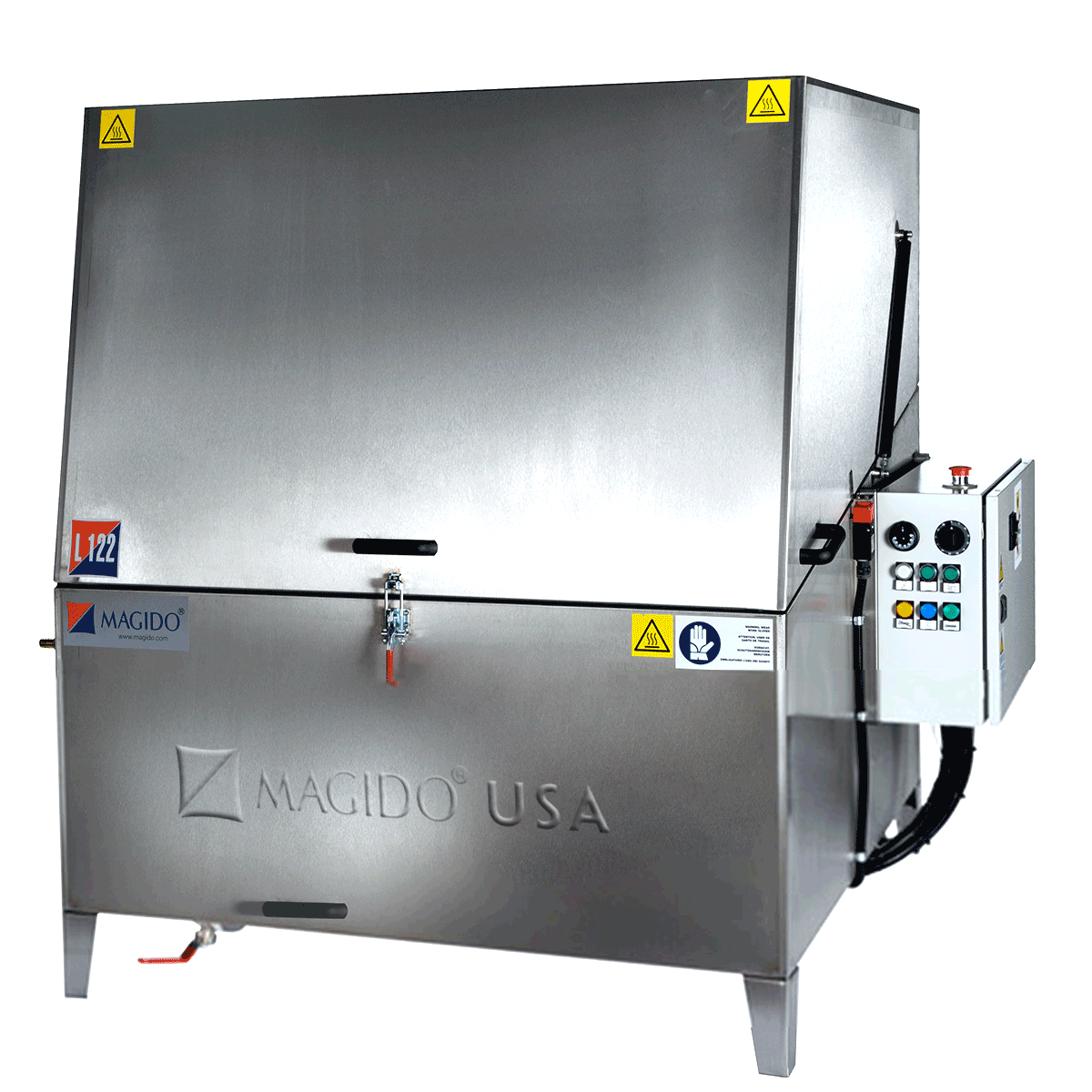

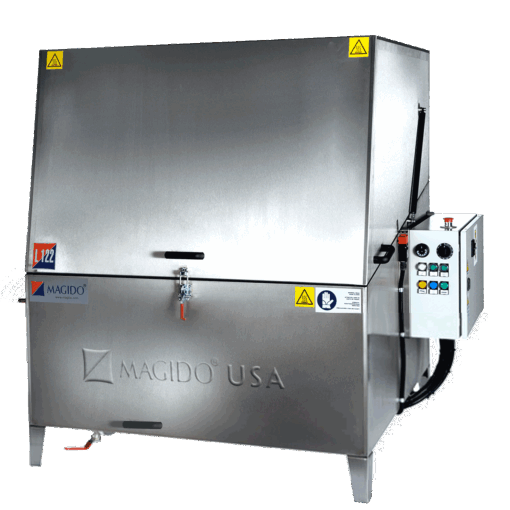

closed lid X51 Series L-122 Top Load Parts Washer

Compare X51 Series Products
Title	L101 Top Load Spray Cabinet Parts Washer	L102 Top Load Spray Cabinet Parts Washer	L122 Top Load Spray Cabinet Parts Washer	L152 Top Load Spray Cabinet Parts Washer
Description	The X51 Series L-101 Aqueous Spray Cabinet Washer features a versatile Top Load clamshell design.	The X51 Series L-102 Aqueous Spray Cabinet Washer features a versatile Top Load clamshell design.	The X51 series, L-122 Spray Cabinet Washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces.	The X51 series, L-152 Spray Cabinet Washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces.
Product Link	Add to cart	Add to cart	Add to cart	Add to cart
Model	L101	L102	L122	L152
Weight	-	-	-	-
Dimension	N/A	N/A	N/A	N/A

Full Specifications Table for the X51 Series Parts Washers

X51 Series	unit	L101	L102	L122	L152
Turntable Basket Diameter	Inches	35″	35″	45″	51″
Spray Bars (304 Stainless)		1	2	2	2
V-Jet Spray Nozzles (optimized)			44	58
Load Weight	Lb	440 lbs	440 lbs	770 lbs	770 lbs
Load Height	in.	19.5″ (16.5″)	19.5″ (16.5″)	27.5″ (24.5″)	31.5″ (28.5″)
Tank Capacity	gal.	46 gal	46 gal	74 gal	80 gal
Flow Rate	GPM	(1) 45	(2) 29	(2) 47.5	(2) 30.5
Spray Pressure	PSI	(1) 34	(2) 37	(2) 34	(2) 35
Pump(s)	hp	1 x 2 hp	2 x 1.2 hp	2 x 2 hp	2 x 2 hp
Heater	kW	6	6	10	12
Amperage	A	37/13	38/14	45/23	52/27
Voltage	Volts	230/460	230/460	230/460	230/460
Phase	Phase	01/03/25	01/03/25	3	3
Timer	Min	0 – 60	0 – 60	0 – 60	0 – 60
Max Operating Temperature	°F	140°	140°	140°	140°
Length (lid open)	Inches	51″	51″	69″	85″
Width	Inches	48.5″	48.5″	58.75″	70.75″
Height (lid open)	Inches	78.25″	78.25″	89″	94″
Shipping Dimensions	Inches	L49xW49xH55	L49xW49xH55	L63xW59xH71	L79xW79xH67
Net Weight	Lbs	310 lbs	330 lbs	550 lbs	830 lbs
Pneumatic Lid		–	–	–	Standard
Automatic Turntable Basket		Standard	Standard	Standard	Standard
