L101 Top Load Spray Cabinet Parts Washer

Name: L101 Top Load Spray Cabinet Parts Washer
Brand: Magido USA
SKU: L101
Availability: InStock

X51 Series

All of our Machines are built using
Heavy Duty 304 Stainless Steel

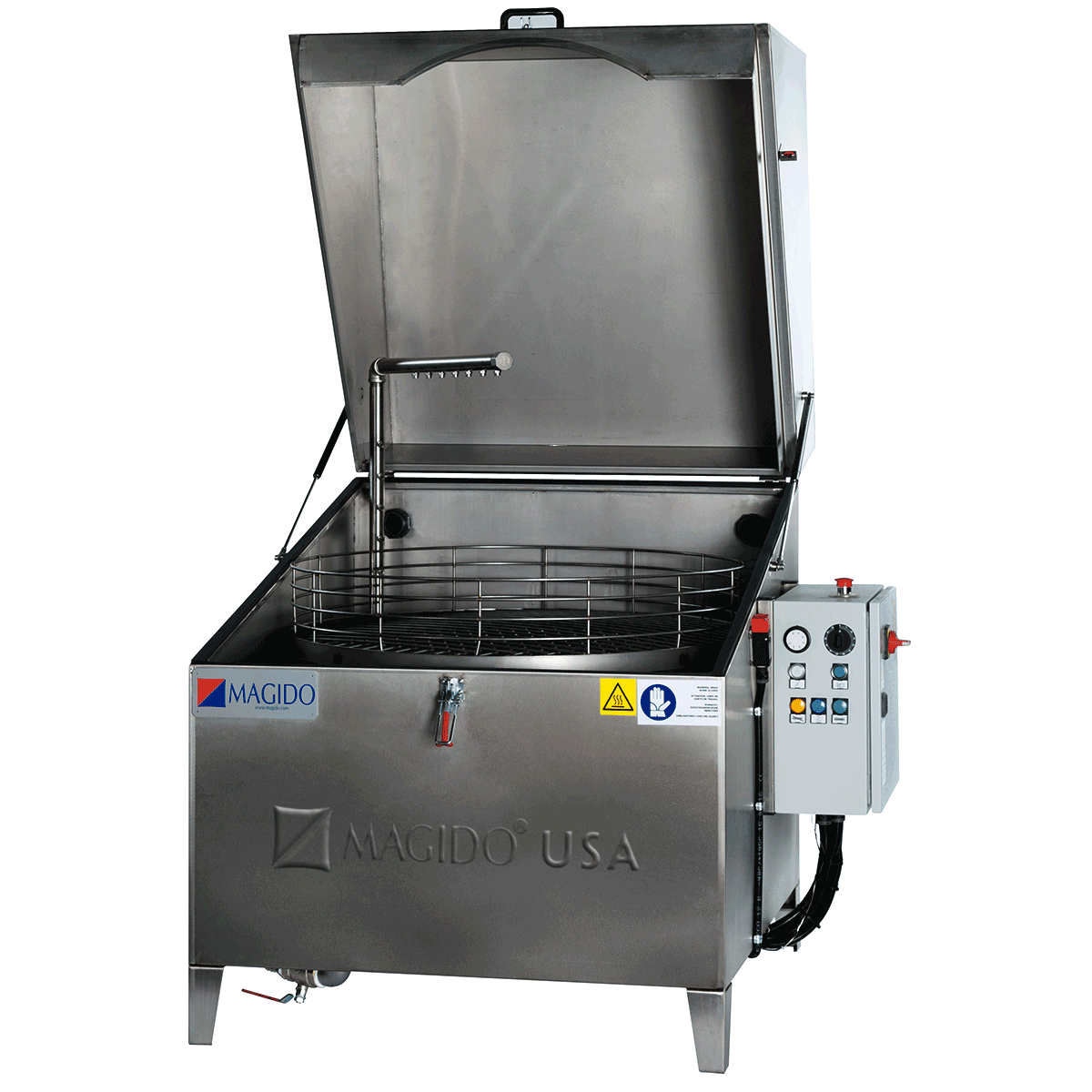

The X51 Series L-101 Aqueous Spray Cabinet Washer features a versatile Top Load clamshell design.

The L-101 parts washer is automatic spray jet wash system that is constructed using AISI 304 stainless steel. Each wash system is equipped with a rotating turntable and a spray bar that uses water pressure to speed the cleaning process. The L-101 is engineered to reduce labor cost without sacrificing wash performance and are perfect for your toughest cleaning applications!

The machine is easily operated by loading the parts into the wash system, the operator simply starts the automatic cycle and then returns to the project at hand while the washer dose all the work. The L-101 will significantly increase the throughput, productivity and profits of your workshop!

FEATURES
OPTIONS

Heavy Duty Stainless Steel Construction
Ergonomic Design
Swing Away Spray Manifolds
60 Minute Timer
Automatic Turntable Motor
Solution Filter
Thermostat Controlled Electrical Heater
Automatic Liquid Level Shut Off
Tank Drain
Low Noise Operation

Oil Skimmer
Tank Insulation
Auto Fill
Air Blow-Off Cycle
Heated and Fresh Water Rinse Cycles
Filtration Stages
PLC Touch Screen Control
Removable Turntable With Rolling Cart

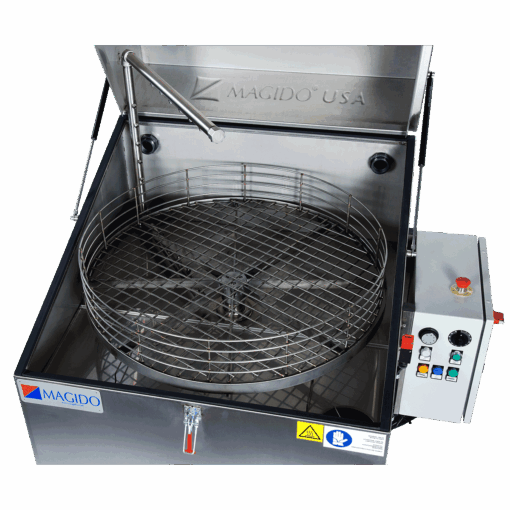

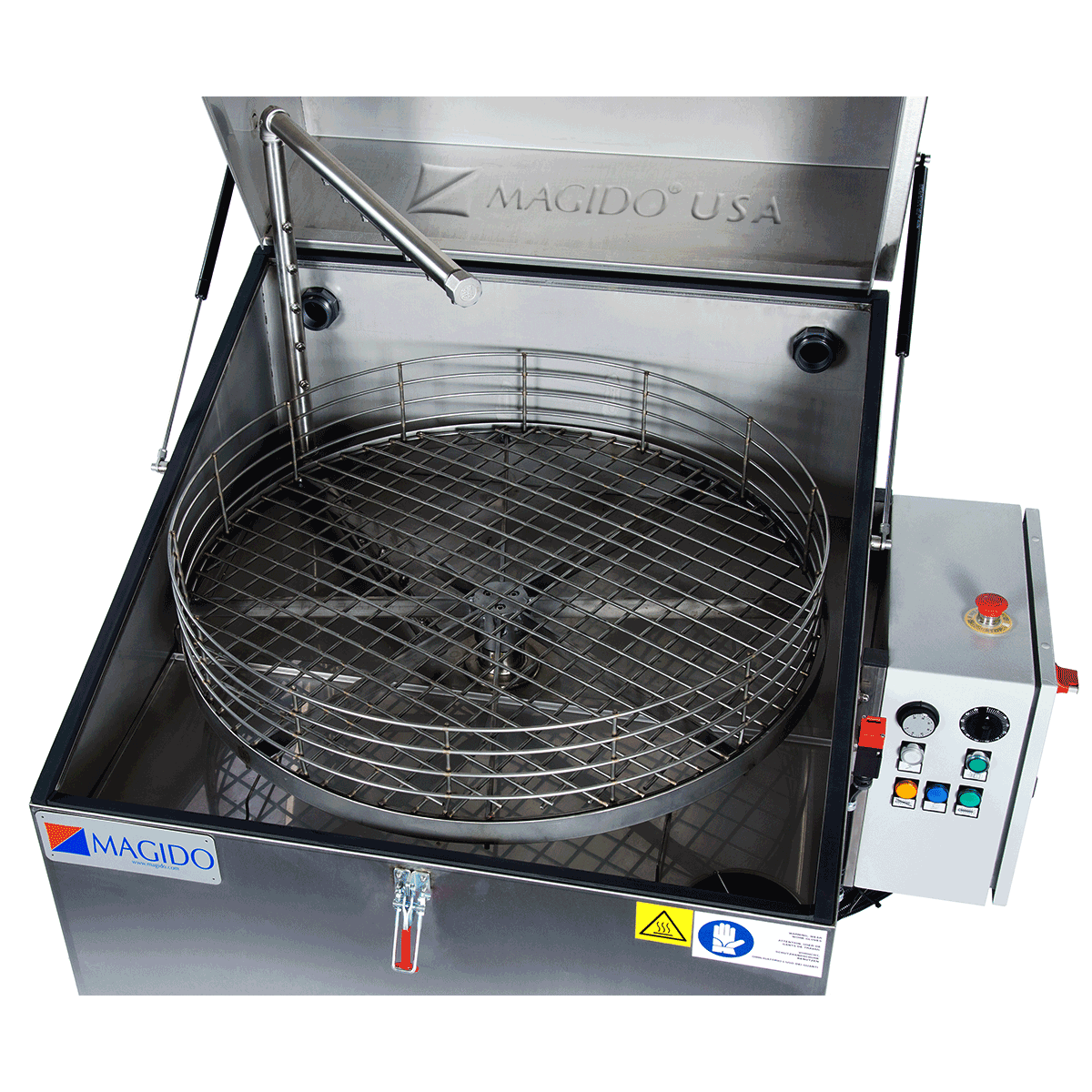

top view X51 Series L101 Top Load washer with rotating basket

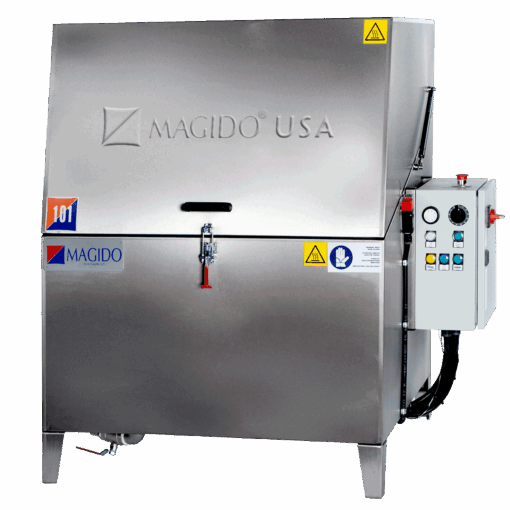

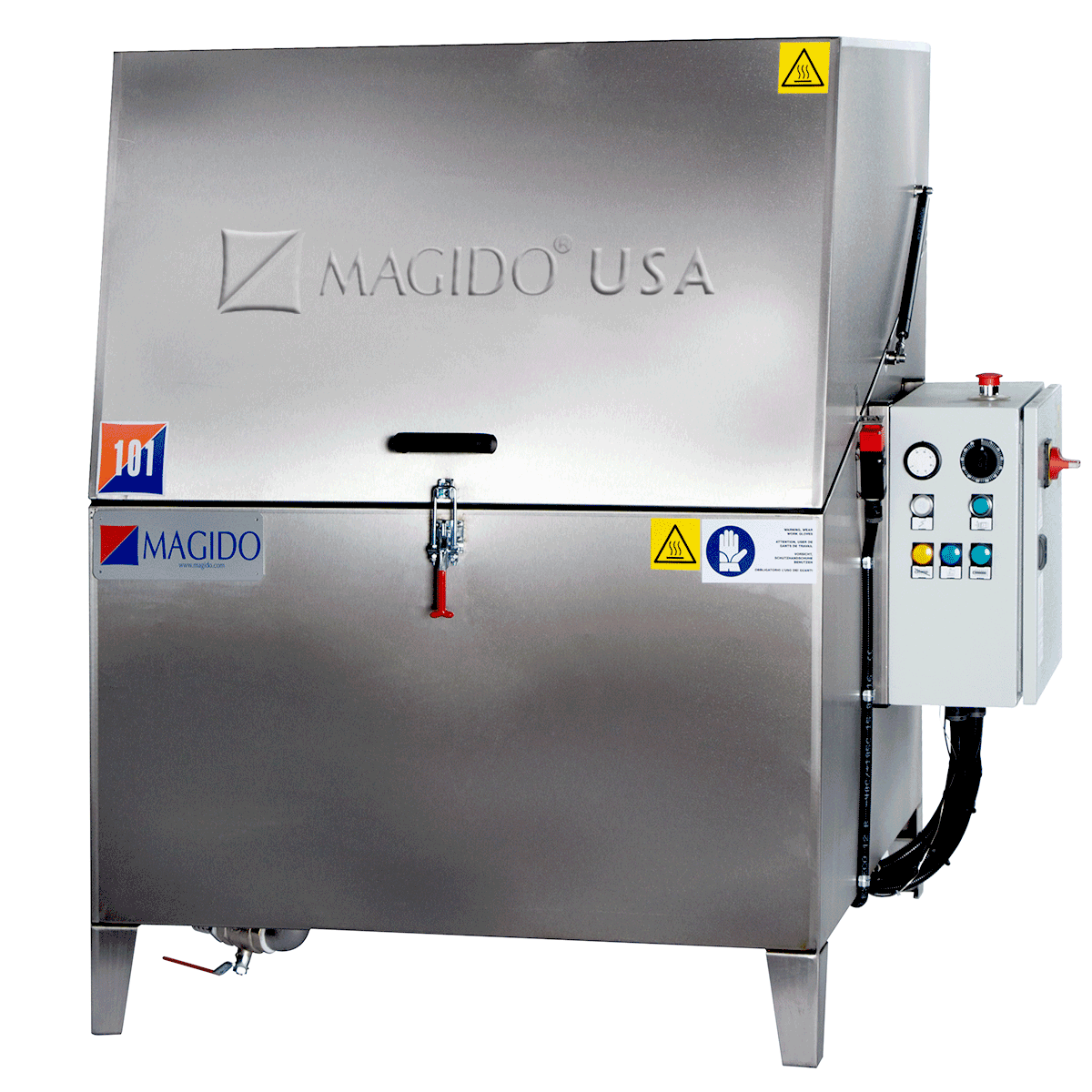

closed lid X51 Series L101 Top Load Parts Washer

Compare X51 Series Products
Title	L101 Top Load Spray Cabinet Parts Washer	L102 Top Load Spray Cabinet Parts Washer	L122 Top Load Spray Cabinet Parts Washer	L152 Top Load Spray Cabinet Parts Washer
Description	The X51 Series L-101 Aqueous Spray Cabinet Washer features a versatile Top Load clamshell design.	The X51 Series L-102 Aqueous Spray Cabinet Washer features a versatile Top Load clamshell design.	The X51 series, L-122 Spray Cabinet Washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces.	The X51 series, L-152 Spray Cabinet Washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces.
Product Link	Add to cart	Add to cart	Add to cart	Add to cart
Model	L101	L102	L122	L152
Weight	-	-	-	-
Dimension	N/A	N/A	N/A	N/A

Full Specifications Table for the X51 Series Parts Washers

X51 Series	unit	L101	L102	L122	L152
Turntable Basket Diameter	Inches	35″	35″	45″	51″
Spray Bars (304 Stainless)		1	2	2	2
V-Jet Spray Nozzles (optimized)			44	58
Load Weight	Lb	440 lbs	440 lbs	770 lbs	770 lbs
Load Height	in.	19.5″ (16.5″)	19.5″ (16.5″)	27.5″ (24.5″)	31.5″ (28.5″)
Tank Capacity	gal.	46 gal	46 gal	74 gal	80 gal
Flow Rate	GPM	(1) 45	(2) 29	(2) 47.5	(2) 30.5
Spray Pressure	PSI	(1) 34	(2) 37	(2) 34	(2) 35
Pump(s)	hp	1 x 2 hp	2 x 1.2 hp	2 x 2 hp	2 x 2 hp
Heater	kW	6	6	10	12
Amperage	A	37/13	38/14	45/23	52/27
Voltage	Volts	230/460	230/460	230/460	230/460
Phase	Phase	01/03/25	01/03/25	3	3
Timer	Min	0 – 60	0 – 60	0 – 60	0 – 60
Max Operating Temperature	°F	140°	140°	140°	140°
Length (lid open)	Inches	51″	51″	69″	85″
Width	Inches	48.5″	48.5″	58.75″	70.75″
Height (lid open)	Inches	78.25″	78.25″	89″	94″
Shipping Dimensions	Inches	L49xW49xH55	L49xW49xH55	L63xW59xH71	L79xW79xH67
Net Weight	Lbs	310 lbs	330 lbs	550 lbs	830 lbs
Pneumatic Lid		–	–	–	Standard
Automatic Turntable Basket		Standard	Standard	Standard	Standard
