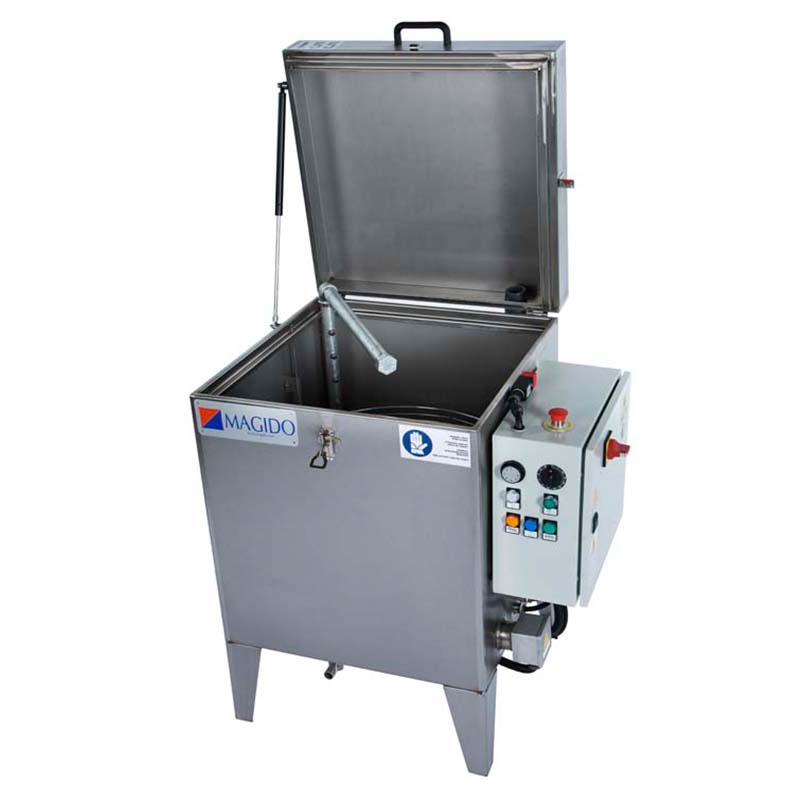

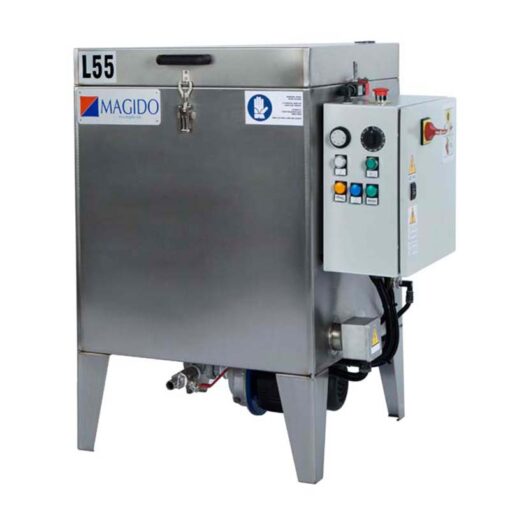

The X81 series, L55 spray cabinet washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces.
The MAGIDO X-81Series features a top load design making them the ideal parts washer for your work-cell cleaning applications.

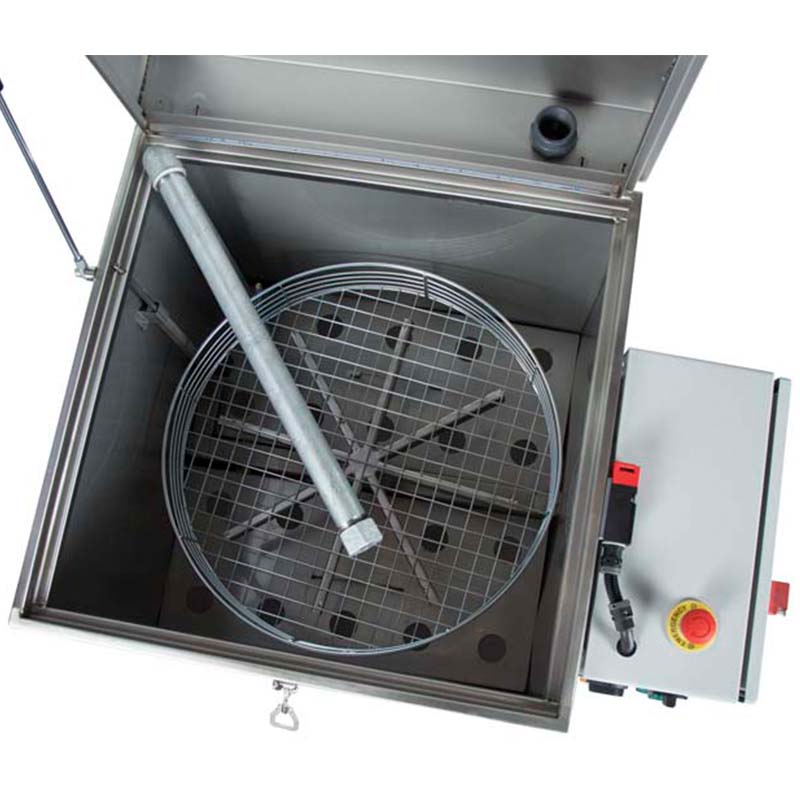

Standard features include the automatic rotary turntable, calibrated jet-spray manifold, solution heater, complete stainless steel construction, fluid level control, tank drain and removable filter basket.
Compare X81 Series Products |
|
|
|
|---|---|---|---|
|
Title
|
L35 Top Load Spray Cabinet Washer | L55 Top Load Spray Cabinet Washer | L 90 Top Load Spray Cabinet Washer |
|
Description
|
The X81 series, L35 spray cabinet washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces. |
The X81 series, L55 spray cabinet washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces. |
The X81 series, L90 spray cabinet washer features a Top Load design, jet-spray nozzles, and a rotating basket that are ideal for smaller work spaces. |
|
Product Link
|
Read more | Read more | Read more |
|
Model
|
L35 | L55 | L90 |
|
Weight
|
- | - | - |
|
Dimension
|
N/A | N/A | N/A |
| Specification | Unit | L-35 | L-55 | L-90 |
|---|---|---|---|---|
| Turntable Basket Diameter | Inches | 15” | 23” | 31” |
| Load Height | Inches | 13.5” | 13.5” | 19.5” |
| Load Weight | Lbs | 155 lbs | 220 lbs | 330 lbs |
| Fluid/Tank Capacity | gal US | 15 gal | 25 gal | 30 gal |
| Pump | Hp | 0.75 hp | 0.75 hp | 1 hp |
| Flow Rate | GPM | 17 GPM | 20 GPM | 24 GPM |
| Spray Pressure | PSI | 37 psi | 35 psi | 35 psi |
| Spray Bar (304 Stainless)* | 1 | 1 | 1 | |
| V-Jet Spray Nozzles (Optimized) | 15 | 15 | 20 | |
| Heater | kW | 2 kW | 3 kW | 4 kW |
| Max Operating Temperature | °F | 140°F | 140°F | 140°F |
| Timer | Minute | 0-60 min | 0-60 min | 0-60 min |
| Manual Lid Shock Supports | 2 | 2 | 2 | |
| Voltage | Volts | 230 | 230/460 | 230/460 |
| Amperage | Amps | 13.6 | 18/6.3 | 20/8.5 |
| Phase | Ph | 1 | 1/3 | 1/3 |
| Length (lid open) | Inches | 26.75” | 34.75” | 46.75” |
| Width | Inches | 29.5” | 34.75” | 42.25” |
| Height (lid open) | Inches | 53.5” | 64.5” | 68.5” |
| Shipping Dimensions | Inches | L30” x W22” x H41” | L36” x W28” x H40” | L45” x W36” x H49” |
| Weight | Lbs | 110 lbs | 130 lbs | 175 lbs |
