L162 Front Load Parts Washer

Name: L162 Front Load Parts Washer
Brand: Magido USA
SKU: L162
Availability: InStock

X53/2 Series

All of our Machines are built using
Heavy Duty 304 Stainless Steel

The Front Load L-162 aqueous parts washer with rollout turntable is the ideal choice for Heavy-Duty production and maintenance operations.

The frontload space saving design makes the L162 the ideal choice for Heavy-Duty production and maintenance parts washing operations. Simply load the parts, close the door, and the automatic wash/rinse processes will take care of the rest by using the power of angled spray nozzles and rotating turntable to ensure the parts are toughly cleaned.

FEATURES
OPTIONS
SAFETY FEATURES

Durable 304 Stainless Steel Construction
Isolated Wash/Rinse Cycles
304 Stainless Steel Pumps
Incoloy Heating Elements
Fluid Level Sensor Auto Fill Combination
304 Stainless Steel Turntable
304 Stainless Steel Spray Bars With Optimized (V-Jet) Wash Nozzles
Attached Load Table or Roll Away Turntable Cart
Removable Isolation Floor & Chip Basket
Steam Exhaust Fan
Drain Pump
Removable Tank Access Panels
Automatic Door Closure With Safety Controls
PLC With HMI Touch Screen
Tank & Cabinet Insulation

Additional Cleaning Stage (Heated Wash/Rinse)
Continuous Rinse To Drain
Heated Dryer
Air Blow-Off
Filtration
Oil Water Separator
Oil Skimmer
Steam/Mist Collector
Chemical Proportioning System
Expanded Load Weight Up To 5,000 lbs.
Automatic Load/Unload
T-Shaped Load Table
Stack Light Tower
Dual Load Doors For Continuous Wash Operations
Expanded Load Height
Expanded Fluid Capacity
Pump Upgrade 15/20+ HP

24V Low Voltage Control
Electrical Enclosure & Motors Are NEMA 4/IP 54 – IP55 Rated
Push Button Emergency Stop
Main Disconnect Switch With Lock-Out Feature
The Pumps, Turntable Drive & Heaters Are Protected By Overload Protection
Two-Hand Door Controls
Door Interlock Safety Switch
Liquid Level Controls To Protect The Pumps & Heaters
No Sharp Metal Edges
Low Noise Operation < 70

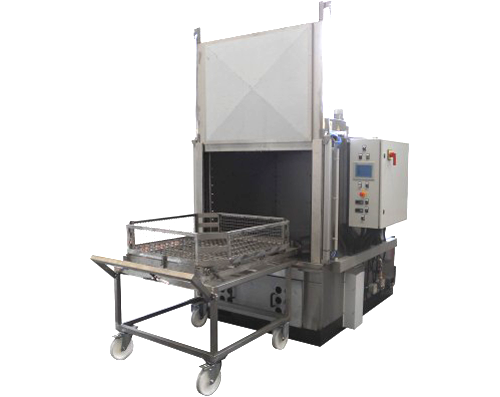

front view of the X52/2 series L-162 front load parts washer with view of parts basket and roll away loading cart

Compare X53/2 Series Products
Title	L162 Front Load Parts Washer	L192 Front Load Parts Washer	L212 Front Load Parts Washer	L242 Front Load Parts Washer
Description	The Front Load L-162 aqueous parts washer with rollout turntable is the ideal choice for Heavy-Duty production and maintenance operations.	The X53/2 Series, Front Load L-192 Aqueous Parts Washer with rollout turntable is the ideal choice for Heavy-Duty production and maintenance operations.	The Front Load L-212 washer with rollout turntable is the ideal choice for Heavy-Duty production and maintenance operations.	The X53/2 Front Load L-242 Aqueous Parts Washer with rollout turntable is the ideal choice for Heavy-Duty production and maintenance operations.
Product Link	Read more	Read more	Read more	Read more
Model	L162	L192	L212	L242
Weight	-	-	-	-
Dimension	N/A	N/A	N/A	N/A

Full Specifications Table for the X53/2 Series Parts Washers

Specification	unit	L162	L192	L212	L242

Turntable Basket	Inches	43” x 43”	51” x 51”	59” x 59”	71” x 71”
Load Height	Inches	31.5”	35.5”	39”	39”
Load Weight	Lbs	1,500 lbs	1,500 lbs	1,500 lbs	1,500 lbs

Wash Tank/Fluid Capacity	gal US	77 gal	103 gal	132 gal	185 gal
Rinse Tank/Fluid Capacity	gal US	77 gal	103 gal	132 gal	185 gal
Wash Pump	Hp	7.5 hp	10 hp	10 hp	10 hp
Flow Rate	GPM	132 GPM	132 GPM	132 GPM	132 GPM
Spray Pressure	PSI	65 psi	68 psi	68 psi	68 psi
Rinse Pump	Hp	5.5 hp	5.5 hp	5.5 hp	5.5 hp
Flow Rate	GPM	106 GPM	106 GPM	106 GPM	106 GPM
Spray Pressure	PSI	58 psi	58 psi	58 psi	58 psi

Wash Tank Heater		20 kW	28 kW	30 kW	30 kW
Rinse Tank Heater		10 kW	12 kW	20 kW	20 kW
Max Operating Temperature	°F	160°	160°	160°	160°

Motor Driven Turntable Basket
Power	Hp	0.5 hp	0.5 hp	0.5 hp	0.5 hp
Speed	Rpm	7 rpm	7 rpm	7 rpm	7 rpm

Exhaust Fan
Power	Hp	0.5 hp	0.5 hp	0.5 hp	0.5 hp
Output	CFM	382 cfm	382 cfm	382 cfm	382 cfm

Voltage	V	460 V	460 V	460 V	460 V
Phase	Ph	3	3	3	3
HMI		Weintek	Weintek	Weintek	Weintek
PLC		Siemens	Siemens	Siemens	Siemens

Overall Dimensions (door closed)	Inches	L84” x W100” x H93”	L92” x W112” x H97”	L100” x W116” x H100”	L148” x W95” x H101”
Overall Dimensions (door open)	Inches	L84” x W100” x H118”	L92” x W112” x H116”	L100” x W116” x H134”	L148” x W95” x H134”
Net Weight	Lbs	2,645	2,976	3,127	3,640
