Magido Italy
X51 Series

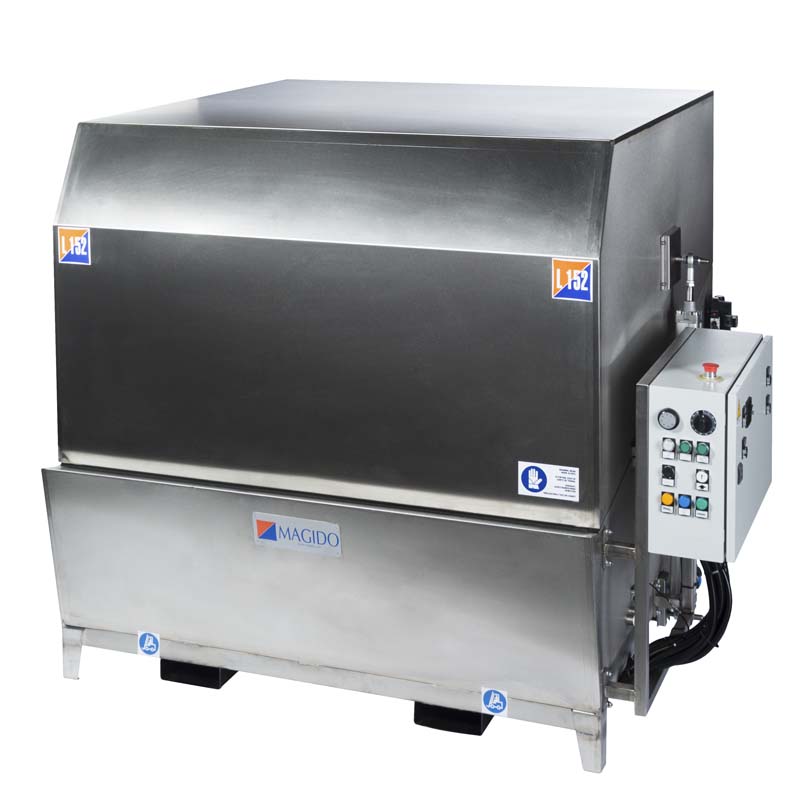

L152 Top Load Spray Cabinet Parts Washer

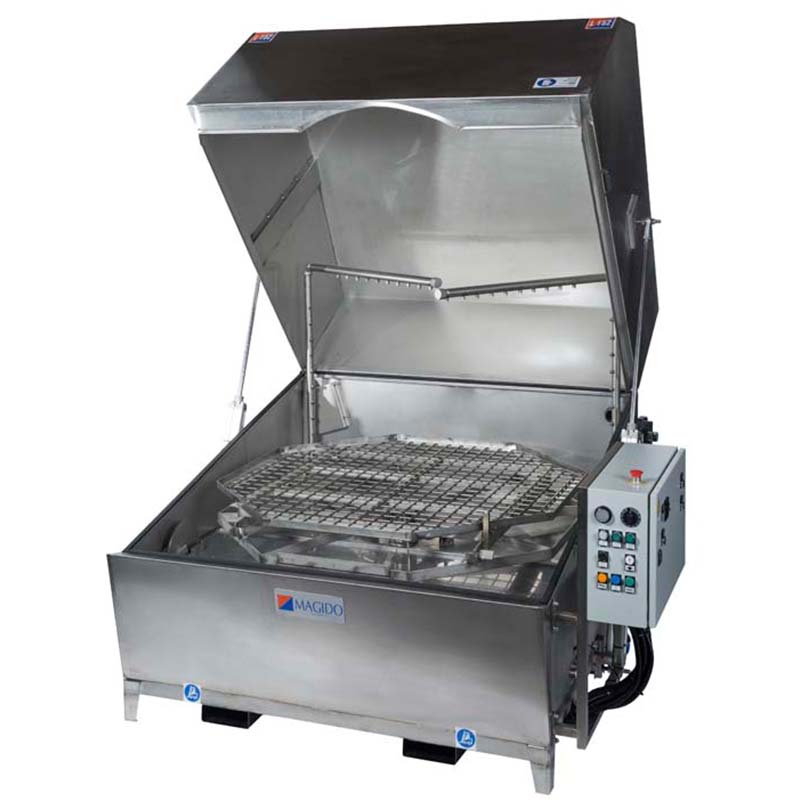

The Magido L152 is the largest model in the X51 Series, featuring a 51" turntable, 80-gallon tank, and 770-lb load capacity — the maximum top-load spray cabinet configuration in this line. Two spray bars with 58 V-jet nozzles cover the full 51" turntable sweep, delivering consistent aqueous cleaning at temperatures up to 150°F across large fabricated components, transmission cases, and oversized machined parts that would otherwise require a front-load machine. The 7 RPM rotating turntable provides complete surface coverage without manual handling. Built from AISI 304 stainless steel throughout with adjustable heater, programmable timer, and fluid level sensor. Options include filtration, drying, and oil skimmer.
- Basket Dia.
- 51" Inches
- Load Weight
- 770 lbs
- Load Height
- 31.5" (28.5") in.
- Tank
- 80 gal gal.
- Pump
- 2 x 2 hp
- Flow Rate
- (2) 30.5 GPM
- Spray Pressure
- (2) 35 PSI
- Heater
- 12 kW
- AISI 304 Stainless Steel Construction
- Automatic Rotary Turntable with Sprocket Drive
- V-Jet Spray Nozzle System (up to 58 nozzles)
- Adjustable Solution Heater & Wash Cycle Timer
- Fluid Level Sensor
- Removable Filter Basket
- Tank Drain
