X51 Series

L102 Top Load Spray Cabinet Parts Washer

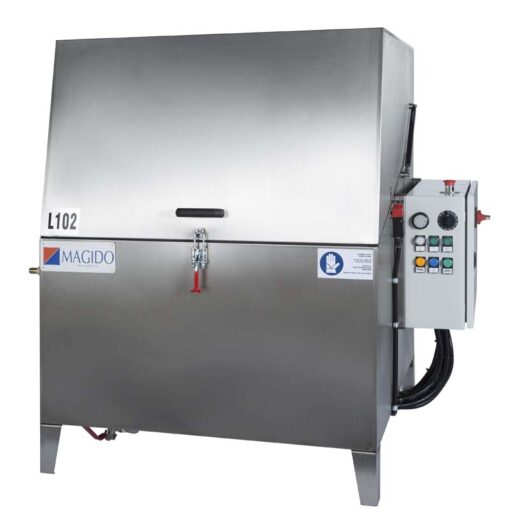

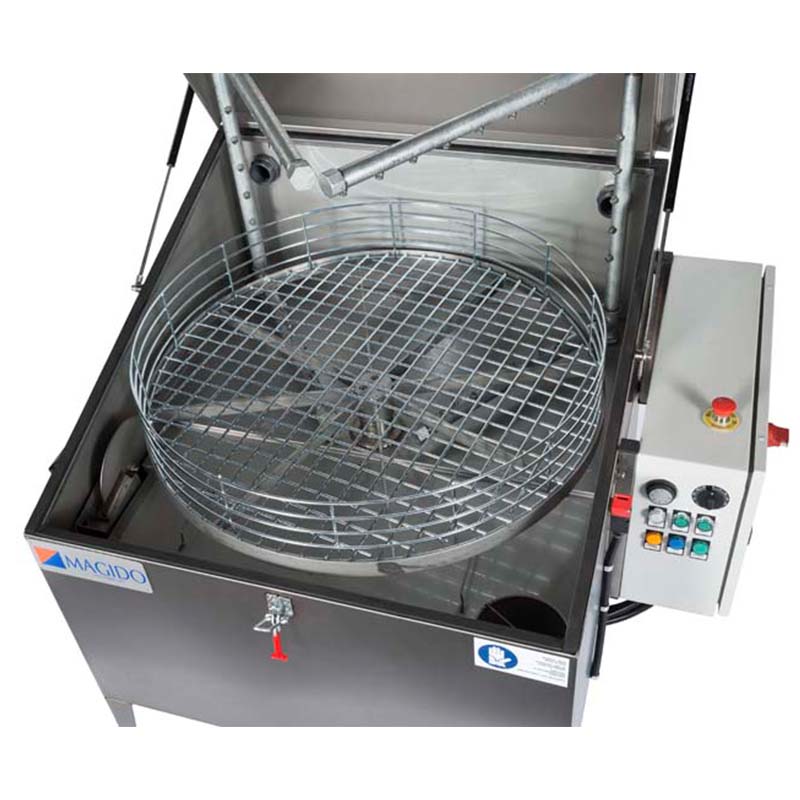

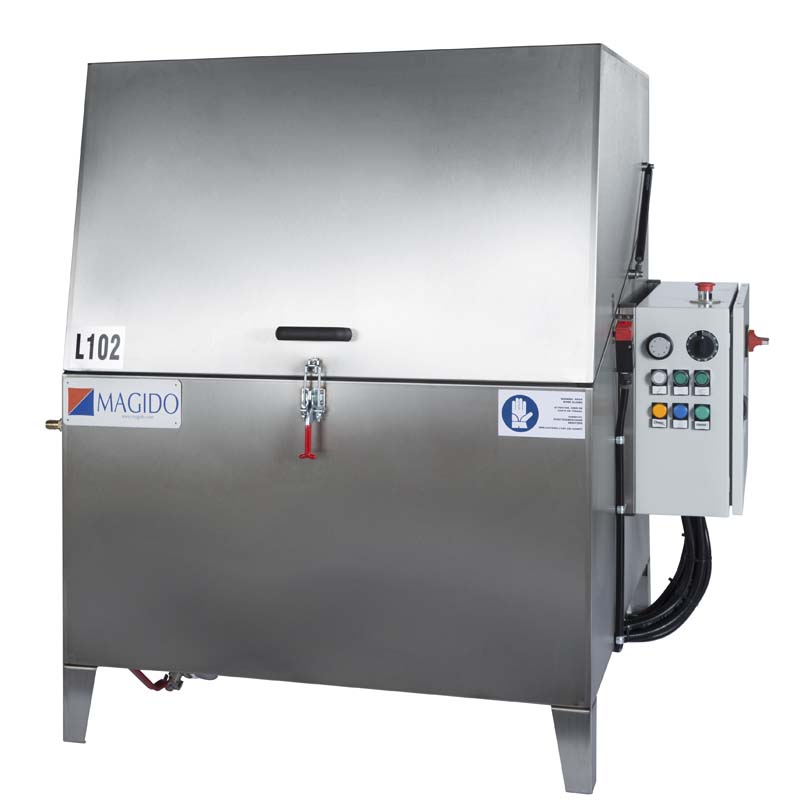

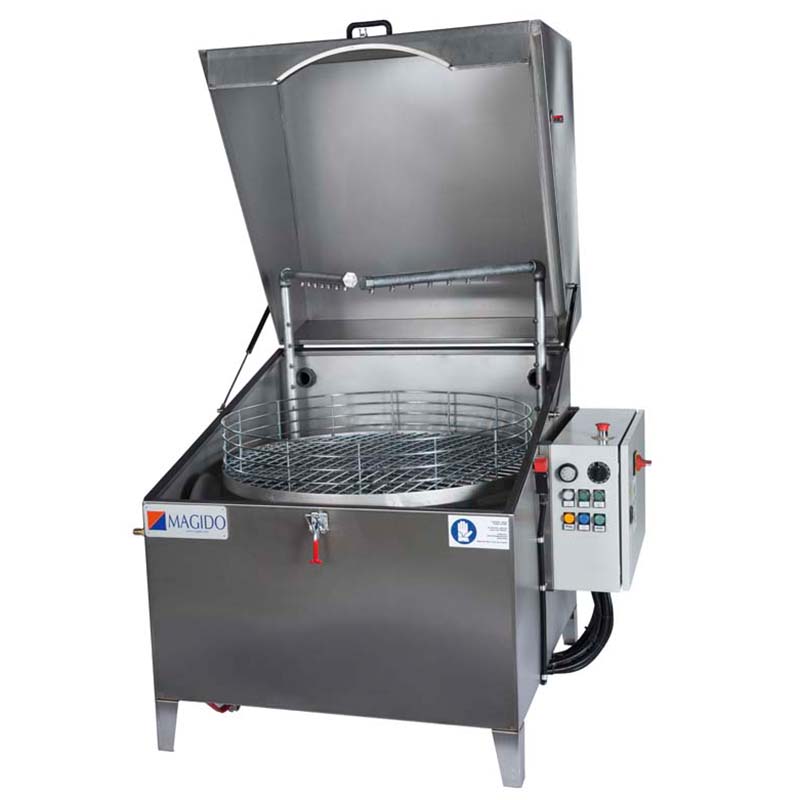

The Magido L102 is an automatic top load spray cabinet parts washer from the X51 Series, sharing the 35" turntable, 46-gallon tank, and 440-lb load capacity of the L101 but upgrading to a dual spray bar configuration. Two 304 stainless steel manifolds with 44 V-jet nozzles deliver twice the cleaning coverage of the L101, making the L102 better suited for heavier contamination loads — cutting oils, forming compounds, carbon deposits, and tenacious greases — on parts that fit the same 35" turntable. The automatic turntable rotates at 7 RPM for full surface coverage. Built from AISI 304 stainless steel throughout with adjustable heater, programmable timer, and fluid level sensor. Options include filtration, drying, and oil skimmer.

Basket Dia.

35" Inches

Load Weight

440 lbs

Load Height

19.5" (16.5") in.

Tank

46 gal gal.

Pump

2 x 1.2 hp

Flow Rate

(2) 29 GPM

Spray Pressure

(2) 37 PSI

Heater

6 kW
