HP Series

HP25 Manual Cabinet Parts Washer

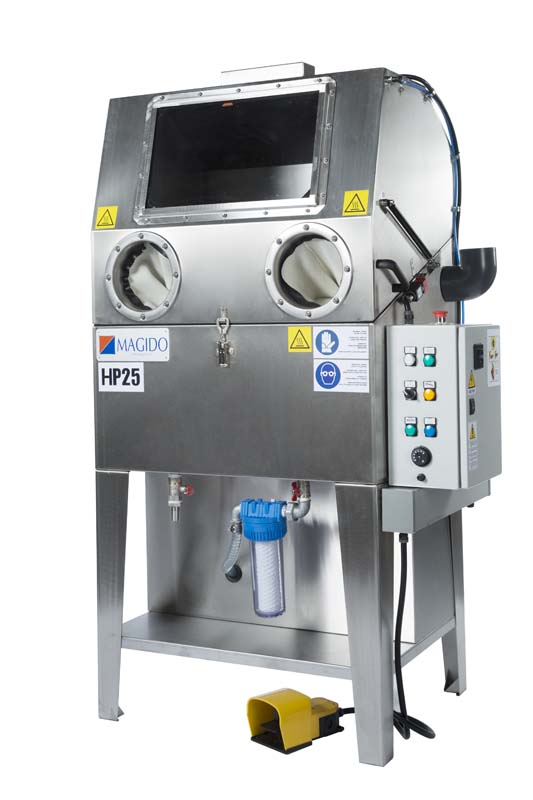

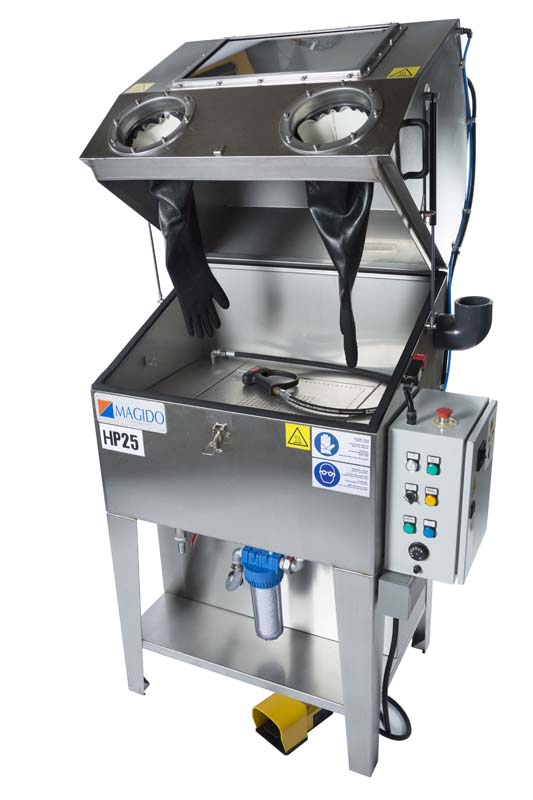

The Magido HP25 is a highpressure manual cabinet parts washer built entirely from AISI 304 stainless steel, featuring a 23" × 31.5" × 19.5" enclosed work envelope and a 40gallon heated tank. A 870 PSI pistondrive pump delivers a focused highpressure spray wand at 3.7 GPM, blasting contamination out of blind holes, bearing bores, threaded passages, valve body galleries, and intricate features that conventional spray manifolds cannot reach. The enclosed cabinet keeps overspray contained and the operator dry. Standard features include an LEDilluminated cabinet, ergonomic spray wand, windowclearing blower, thermostatcontrolled heater, liquid level sensor, low water shutoff, removable work tray, and screened filter basket. The HP25 is the compact model — ideal for automotive service bays, transmission shops, and maintenance facilities where floor space is limited.

Working Area

L23" x W31.5" x H19.5" Inches

Load Weight

350 lbs

Tank

40 gal gal US

Flow Rate

3.7 GPM

Spray Pressure

430 - 870 psi

Heater

3 kW

Temperature

113°F

Power Supply

26.5/14 Volts / Amps
